Q1013-DX dc Motor Charateristics
| Model | Voltage(V) | No load | At Max Efficiency | ||||
| Operating Range | Nominal | Current(mA) | Speed(r/min) | Speed | Curent | Torque | |
| Q1013 | 1.5-42 | 3.0v | 90 | 28000 | 1770rpm | 568ma | 5.5g.cn |

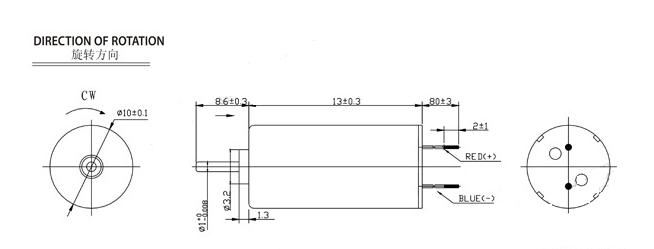

Q1013 DC Motor Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net
Q1013-DX dc Motor Charateristics
| Model | Voltage(V) | No load | At Max Efficiency | ||||
| Operating Range | Nominal | Current(mA) | Speed(r/min) | Speed | Curent | Torque | |
| Q1013 | 1.5-42 | 3.0v | 90 | 28000 | 1770rpm | 568ma | 5.5g.cn |
Q1013 DC Motor Drawing
