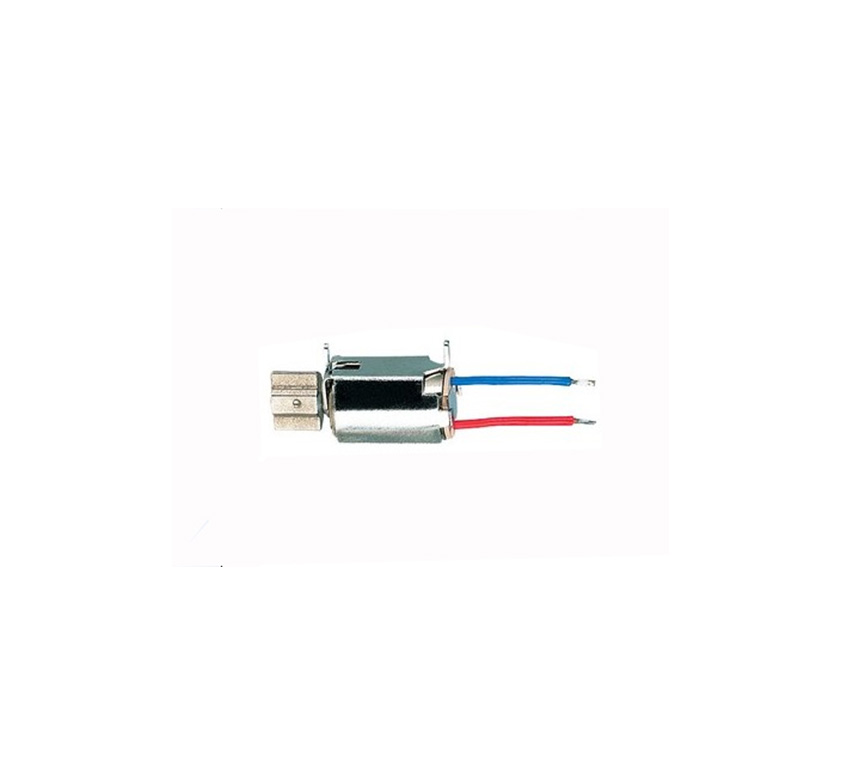

Z0610-JZ-DX Mini Vibrating Motor Characteristic Pager Motor
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| Z0610-JZ-DX | 1.3 | 0.75 | 8500±2000 | 90 | 140 | 11 | 0.9~1.6 |

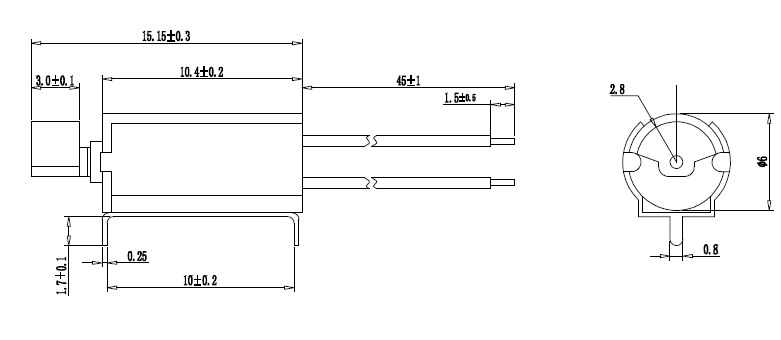

Z0610-JZ-DX Pager Motor Drawing
