Z0614-JZ Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| Z0614-JZ | 3.0 | 1.7 | 10300±2500 | 30 | 136 | 41 | 2.2~3.6 |

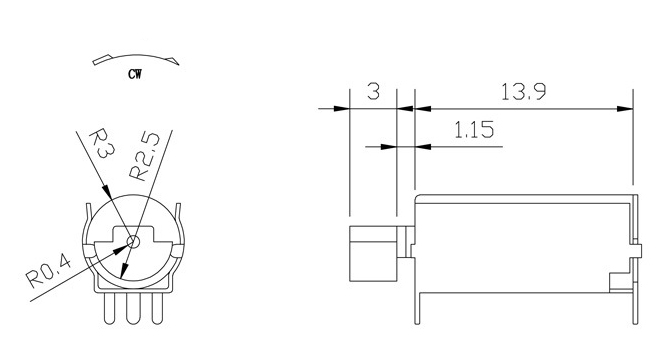

Z0614-JZ Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net
Z0614-JZ Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| Z0614-JZ | 3.0 | 1.7 | 10300±2500 | 30 | 136 | 41 | 2.2~3.6 |
Z0614-JZ Drawing
