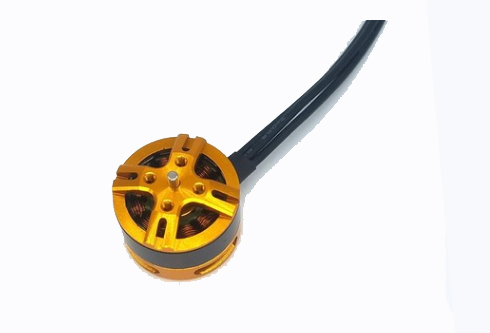

BLDC motor specifications:
KV.....................................................................................................2300
Configu ration.....................................................................................NP
Stator Diameter...................................................................................18mm
Stator Length.....................................................................................6mm
Shaft Diameter....................................................................................2.0mm
Motor Dimensions(Dia.*Len).................................................................Φ23×18.5mm
Weight (g).........................................................................................18g
No.of Cells(Lipo).................................................................................2-4S
Max Continuous current(A)...................................................................13.6A
Max Continuous Power(W)...................................................................228.5W
Internal resistance...............................................................................0.19??
