Iphone 14 disassebmly

From the internal structure of the iPhone 14 Pro Max, it still follows the clean and beautiful style of the iPhone.

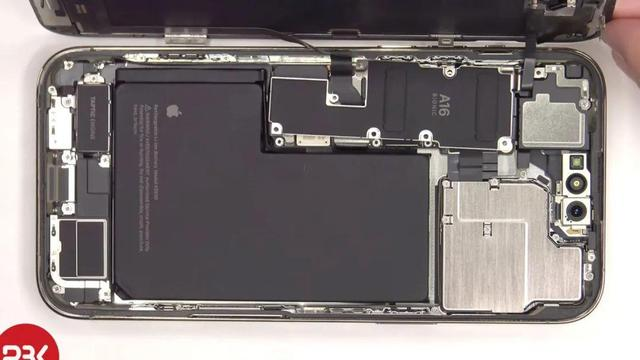

Overall, it is basically the same as the iPhone 13 Pro Max, with an L-shaped battery and a double-layer motherboard on the side.

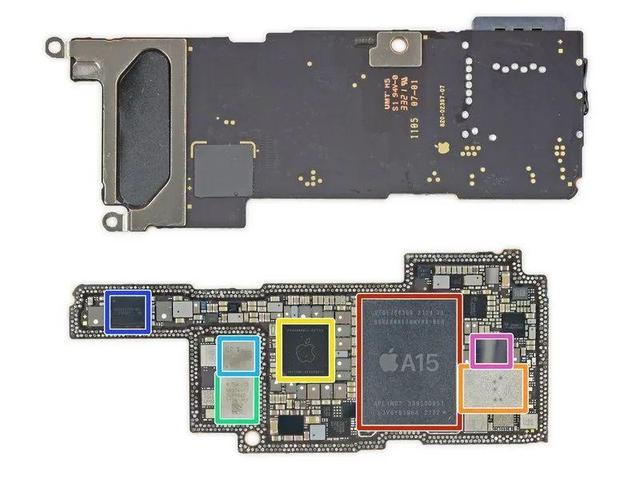

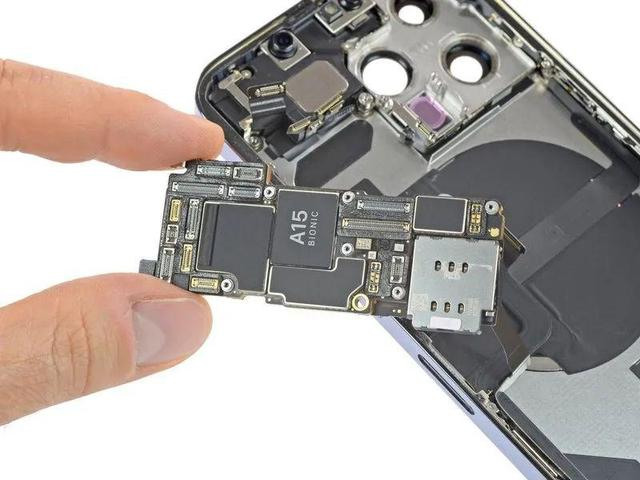

However, unlike the iPhone 13 Pro Max, the A16 motherboard of the iPhone 14 Pro Max differs in design.

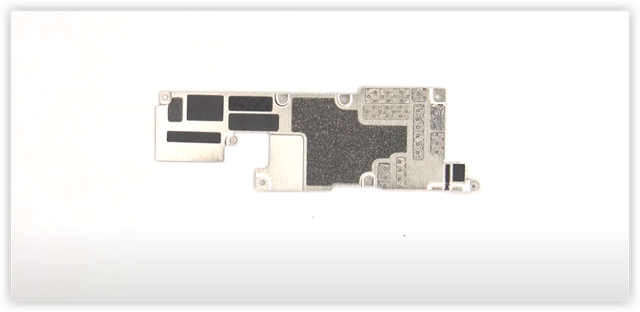

The A16 motherboard is covered with a metal plate and graphite pad, which appears to better absorb heat and improve heat dissipation capacity.

Based on this, Apple introduced at the press conference that the internal structure of the iPhone 14 series has been redesigned.

Compared to the previous generation models, the heat dissipation capacity is stronger and can continuously output full blood while ensuring performance.

There are already IPHONE 14 friends who can share their usage experience and see if the new iPhone can achieve better cooling.

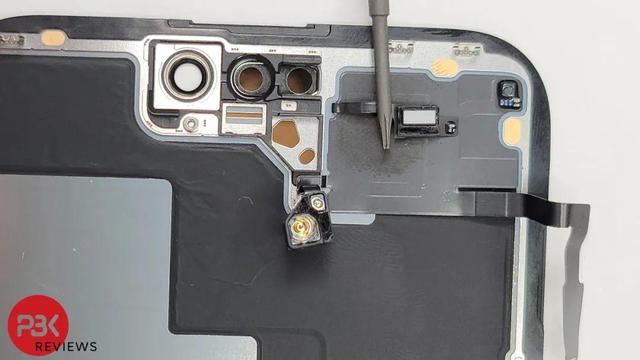

In addition, due to the iPhone 14 Pro series model abandoning the bangs design, the camera module on the front of the screen is also smaller than before.

At the same time, the larger rear camera module also shows that Apple will significantly improve the imaging performance of the iPhone 14 Pro series models this time.

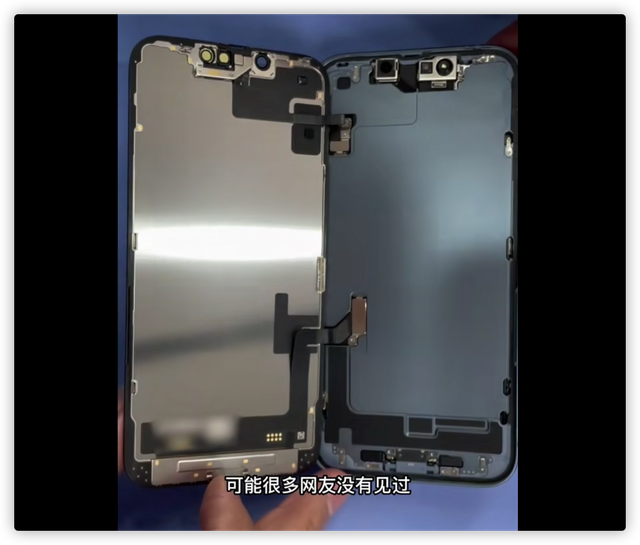

 The standard version of iPhone 14 has an additional layer of baffle between the front screen and the interior, which may also enhance heat dissipation.

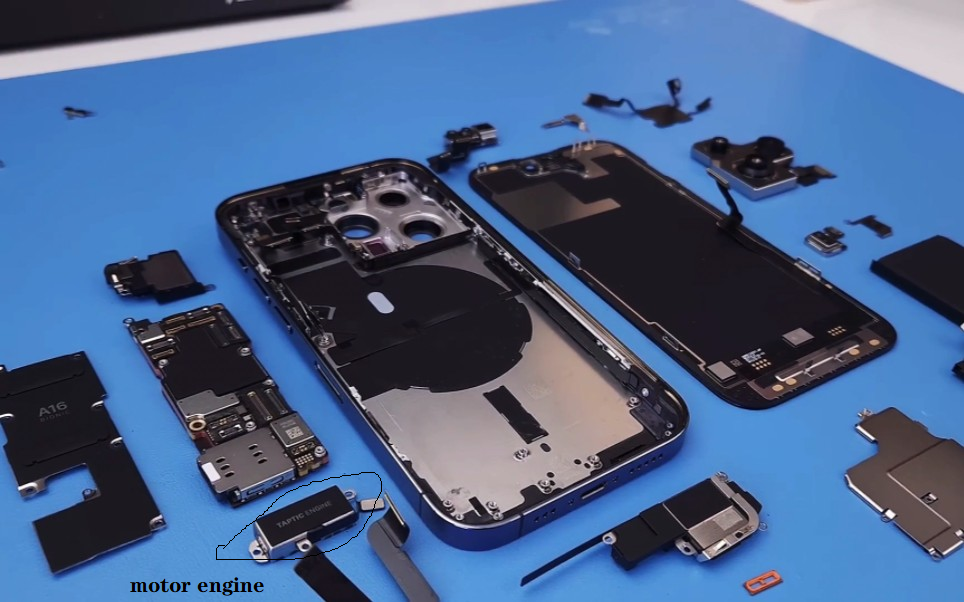

Finally, end with a disassembly diagram. Using a X-axis linear motor as the motor. The Iphone 14 tactile feedback effect is better.

The iPhone 14 Plus motor has an area of approximately 230m ². This means much better feedback.

The direct experience upgrade brought by the big phone motor may be the game scene, and the iPhone 14 is a game phone that can withstand the test.
