Z0308-DX Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| Z0308 | 3.0 | 2.4 | 13000±2500 | 100 | 120 | 30 | 2.2~3.6 |

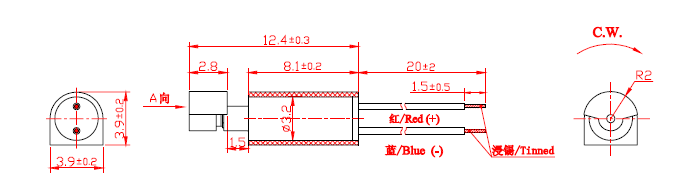

Z0308-DX Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net
Z0308-DX Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| Z0308 | 3.0 | 2.4 | 13000±2500 | 100 | 120 | 30 | 2.2~3.6 |
Z0308-DX Drawing
