Q0411 Characteristic
| Model | Rated Voltage(V) | Working Voltage(V)DC | Rated Current(mA) | Rated Speed(r/min) | Stall Current(mA) | Start Voltage(V)DC | Terminal Resistance(Ω) |
| Q0411 | 1.5 | 1.5~2.0 | 90 | 13000±3000 | 110 | 1.2 | 13 |

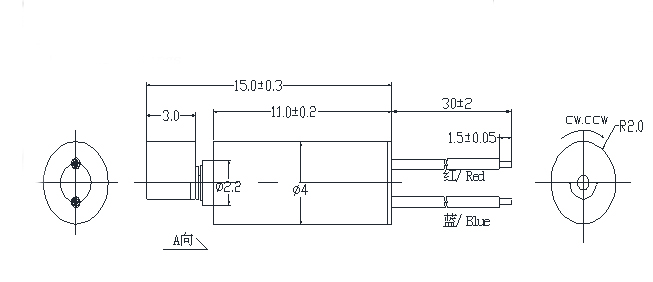

Q0411 Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net
Q0411 Characteristic
| Model | Rated Voltage(V) | Working Voltage(V)DC | Rated Current(mA) | Rated Speed(r/min) | Stall Current(mA) | Start Voltage(V)DC | Terminal Resistance(Ω) |
| Q0411 | 1.5 | 1.5~2.0 | 90 | 13000±3000 | 110 | 1.2 | 13 |
Q0411 Drawing
