Z0716-DX Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| Z0716-DX | 3.0 | 1.7 | 7500±2500 | 35 | 85 | 37 | 2.0~3.8 |

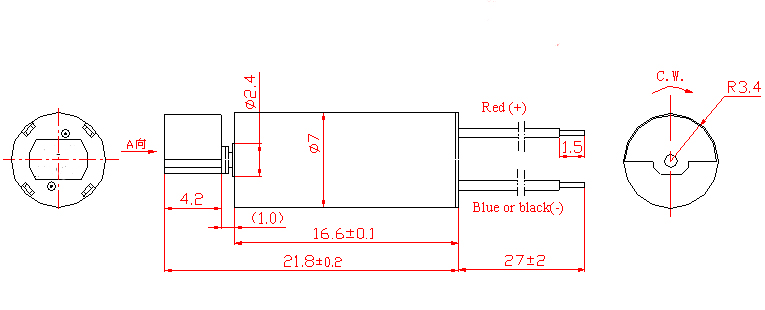

Z0716-DX Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net
Z0716-DX Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| Z0716-DX | 3.0 | 1.7 | 7500±2500 | 35 | 85 | 37 | 2.0~3.8 |
Z0716-DX Drawing
