Q0716 Characteristic
| Model | Rated Voltage(V) | Working Voltage(V)DC | Rated Current(mA) | Rated Speed(r/min) | Stall Current(mA) | Start Voltage(V)DC | Terminal Resistance(Ω) |
| Q0716 | 1.3-3.0 | 1.0-4.0 | ≤1500 | 6000～30000 | 1 | 0.7±0.1 |

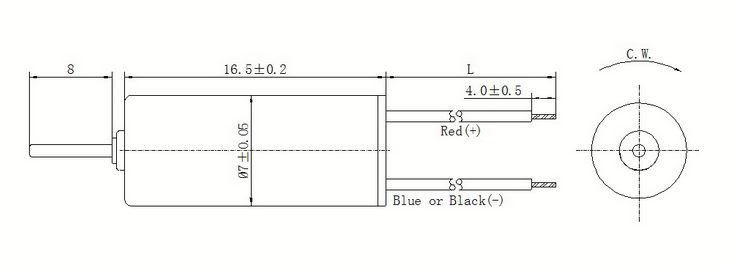

Q0716 Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net
Q0716 Characteristic
| Model | Rated Voltage(V) | Working Voltage(V)DC | Rated Current(mA) | Rated Speed(r/min) | Stall Current(mA) | Start Voltage(V)DC | Terminal Resistance(Ω) |
| Q0716 | 1.3-3.0 | 1.0-4.0 | ≤1500 | 6000～30000 | 1 | 0.7±0.1 |
Q0716 Drawing
