C0834 Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| C0834 | 3.0 | 2.3 | 8000±2500 | 80 | 140 | 10 | 2.7~3.3 |

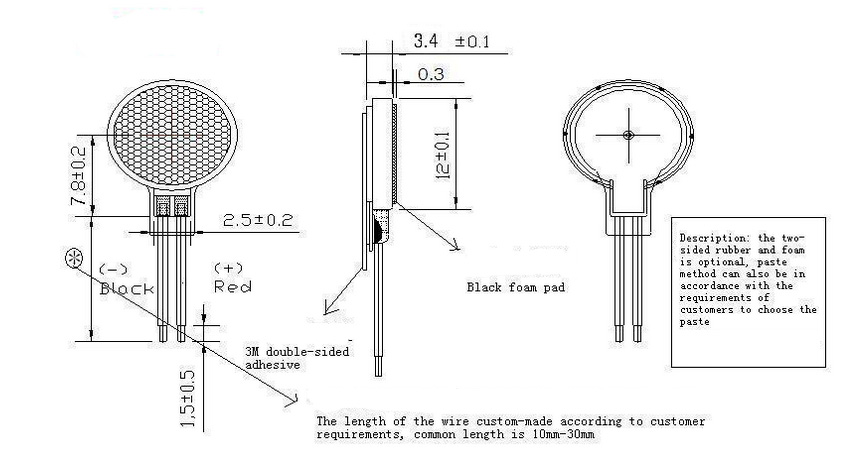

C0834 Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net
C0834 Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| C0834 | 3.0 | 2.3 | 8000±2500 | 80 | 140 | 10 | 2.7~3.3 |
C0834 Drawing
