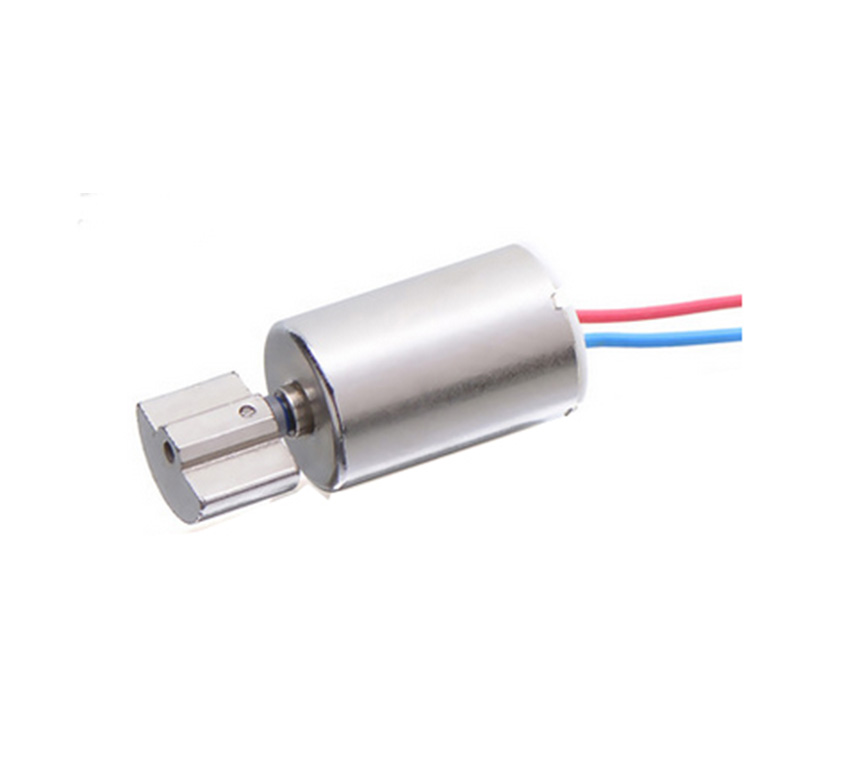

Z0812-DX Vibration Motor Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| Z0812-DX | 3.0 | 1.7 | 22800±2500 | 169 | 580 | 2.2~3.6 |

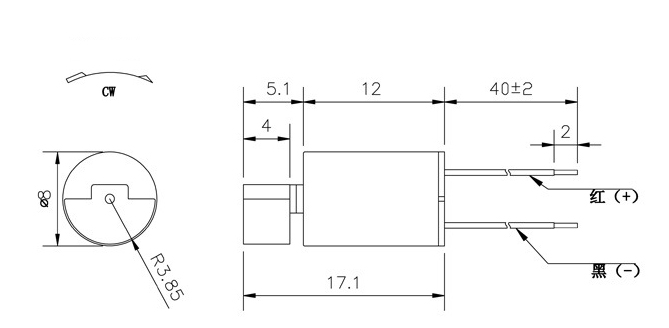

Z0812-DX Vibration Motor Drawing
