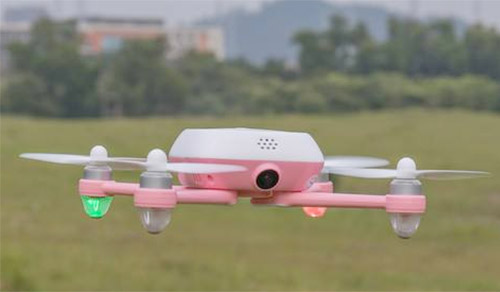

Today's mainstream consumer-class drones are no longer high-end aerial routes, more grounded, and tend to be more portable folding mini drones. This article gives you the cornerstone of KIMON drones, which is also the market. One of the hot folding drone products. It is not only small and portable, but also has a variety of fun aerial photography modes. It is also a cost-effective drone that sells for less than 3,000 yuan. Let's try it out for this cornerstone KIMON. Fun!

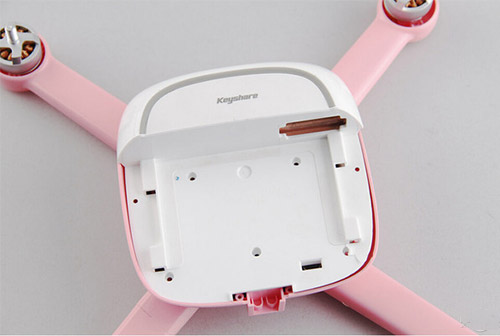

Unpacking the cornerstone Kimon is very simple. Open the battery compartment and unscrew the screws to remove the cover.

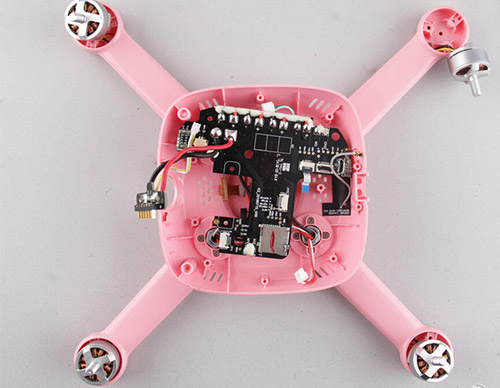

After opening the cover, pay attention to the two internal cables, one is the power cord, and the other is the flight control and GPS cable

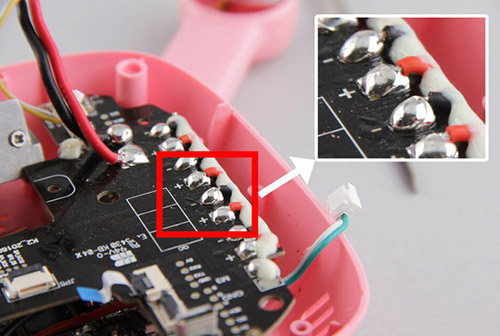

Kimon's solder joints are very delicate

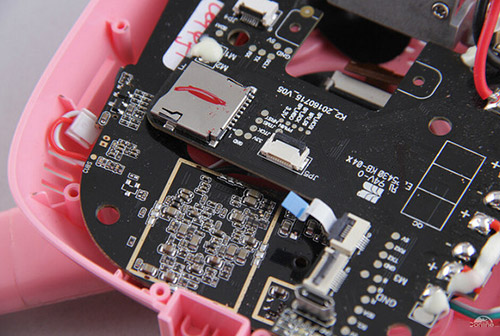

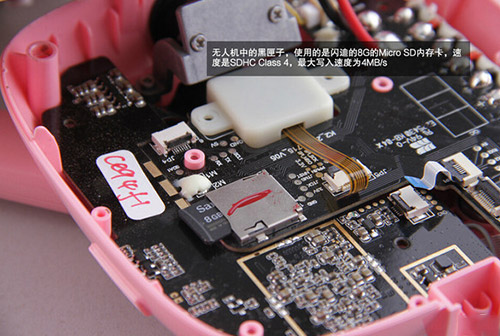

The black box in the drone uses the 3D Micro SD memory card of SanDisk, the speed is SDHC Class 4, and the maximum writing speed is 4MB/s.

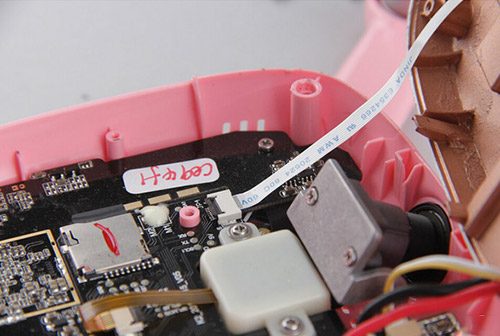

Disassemble the flight control line

The black box in the drone uses the 3D Micro SD memory card of SanDisk, the speed is SDHC Class 4, and the maximum writing speed is 4MB/s.

Disassemble the cover of the top cover

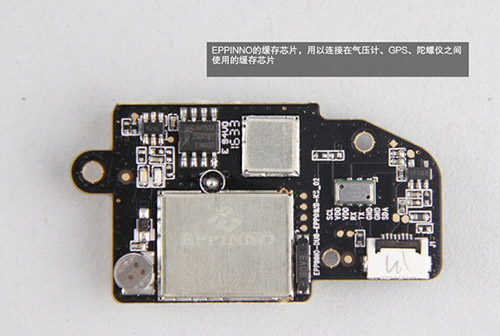

Cache chip

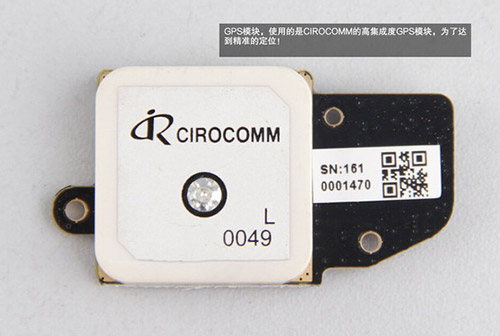

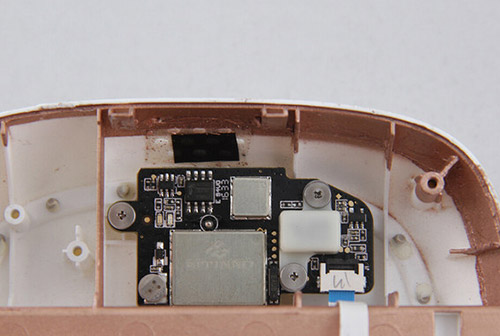

GPS module, using CIROCOMM's highly integrated GPS module

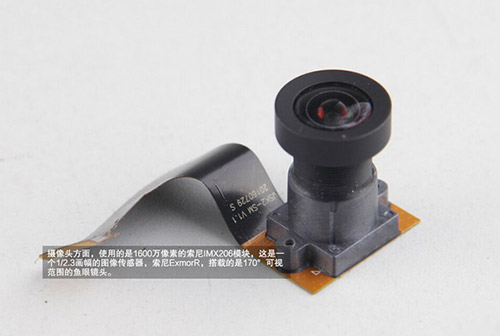

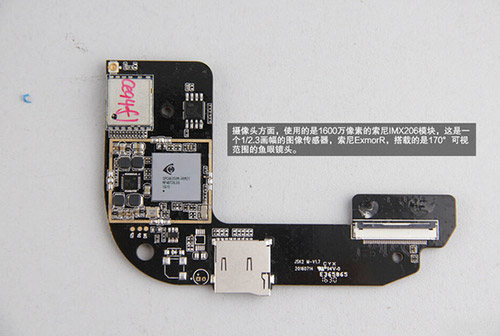

For the camera, the 16-megapixel Sony IMX206 module is used, which is a 1/2.3 format image sensor, and the Sony ExmorR is equipped with a 170° visible range of fisheye lens.

Camera circuit board, image processing chip is SPCA6350M chip, support gyroscope anti-shake, distortion correction, 4K video support interpolation to achieve 24FPS

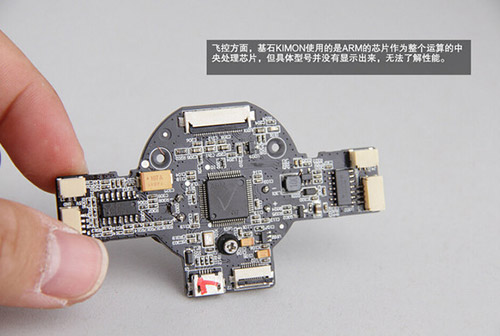

In terms of flight control, the cornerstone KIMON uses the ARM chip as the central processing chip for the entire operation, but the specific model is not displayed and cannot understand the performance.

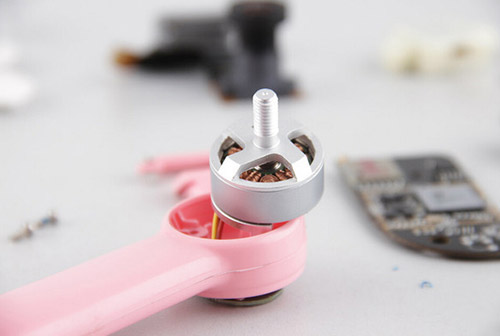

Use a BLDC motor

Because the ESC's ESC is stuck, it cannot be disassembled. For safety reasons, it will be removed here and will not be dismantled.
