Mini Vibration Motor Types

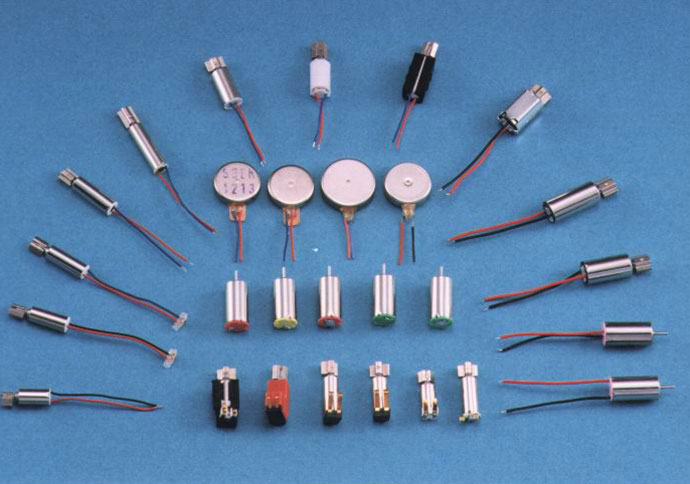

Small Vibration Motor classify:

1 Cylindrical  vibration motor;

(Diameter+thickness)

3*8mm,4*8mm,4*10mm,4*11mm,4*10mm,4*14mm,6*10mm,6*12mm,6*14mm,6*15mm,7*16mm,8*20mm,8.5*20mm,10*13mm.

2 Flat button vibration motor;

The size of the flat motor is as follows: (diameter + thickness, such as 08 indicates that the diameter is 8MM, and the thickness of 2.7MM is 27)
0625,0720,0820,0825,0827, 0830, 0834,1020, 1027, 1030, 1034,1036,1227, 1234,1410.

3 SMT Vibration motor

Cylindrical motor dimensions are as follows: (L * w * h)
11*4.5*3.4mm; 11*4.3*4.5mm; 12*4.5*4.5mm; 13*4.4*4.5mm.........

4 Linear vibration motor

L0825,L0832,L2021,L2024.......

5 BLDC vibration motor,brushless DC motor

（take B0525 for example,B=bldc,05=diameter 5mm,25=2.5mm thickness）

B0525,B0620,B0625,0825，B0832,B1027，B1234

6.Drive mini motor

Diameter 4mm,6mm,7mm,8mm,10mm,12mm.

Vibration Motor assembly method

1 Wire type: manual welding and with two types of connector socket;
Low cost of materials, manufacturers need to increase the manual welding assembly process, higher labor costs;

2 Spring contact type; the need for special structural design, can be replaced;

3 Patch type: divided into planar patch and heavy plate patch type two; early motor designers cannot be reduced to the minimum thickness of the motor to meet the requirements of the development of ultra-thin mobile phone, and the board, saves the thickness of the PCB space. Because of the high temperature reflow soldering, so the relevant material requirements are higher, the
corresponding quality is the best of all types of motor, but also the international brand of mobile phones respected material.

4.FPC type..

5.SMT welding.

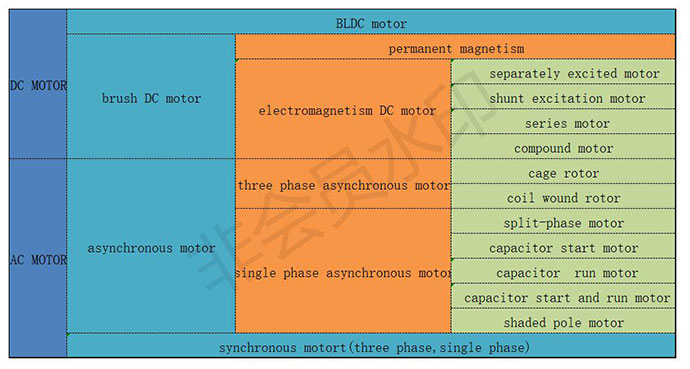

All the small motor classify as follows:

If you have other request of our motor,just email: info@vibrationmotor.net for detail confirm or customized.
