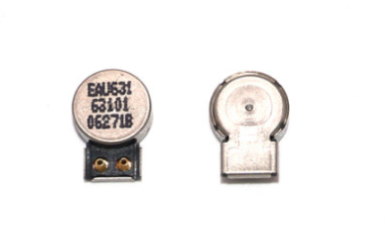

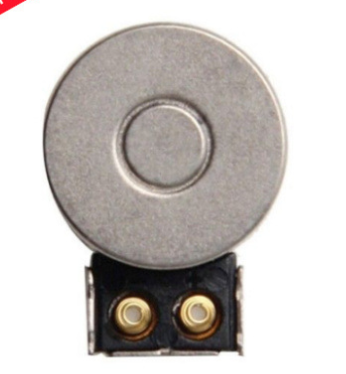

Q Coin motor 1030 Spring Coin Vibration Motor
SPEC
10φx3.0T

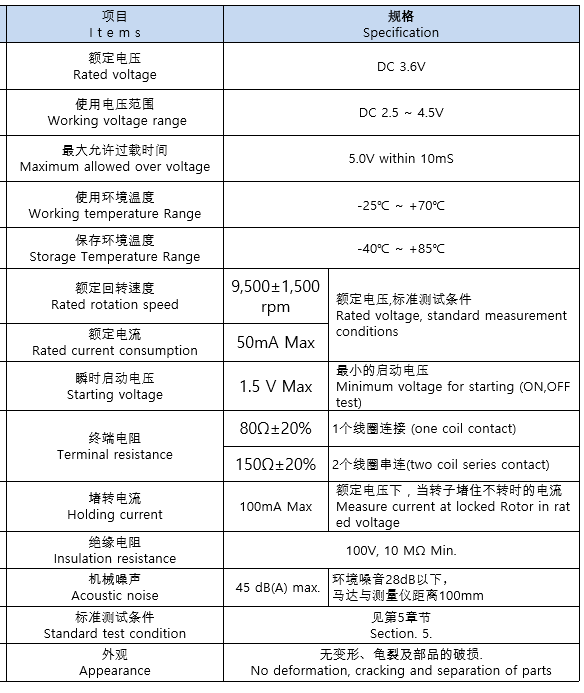

Electrical Characteristics
Rated rotary speed ：9000RPM MIN
Rated current：80MA MAX
instantaneous starting voltage：1.1V
Rated Voltage：2.0V
Terminal resistance ：17Ω±20％
32Ω±20％
This type of motor is Q Coin motor 1030QPFS assembled in the phone without lead wire,least starting voltage and starting time , the lowest cost for the customers.
No lead wire but only spring contact make asseble easily.And this type coin vibration motor is in long life of 20W times.
