C1027 characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| C1027 | 3.0 | 2.3 | 11000±2500 | 80 | 140 | 10 | 2.5~4.0 |

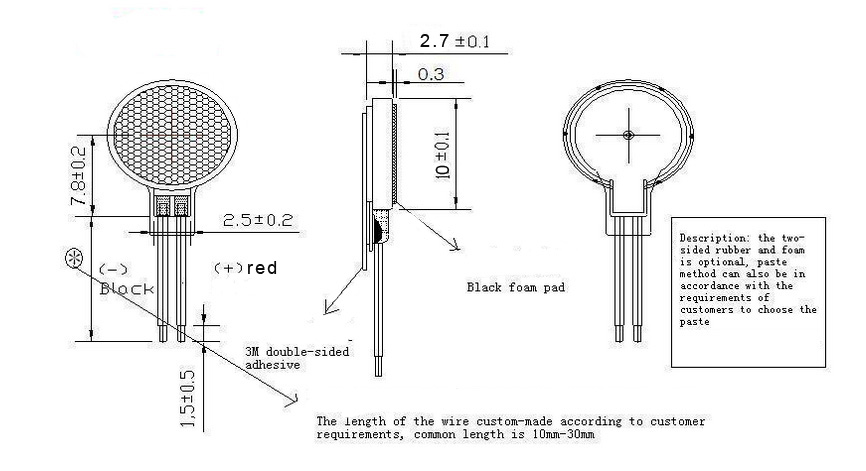

C1027 Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net
C1027 characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| C1027 | 3.0 | 2.3 | 11000±2500 | 80 | 140 | 10 | 2.5~4.0 |
C1027 Drawing
