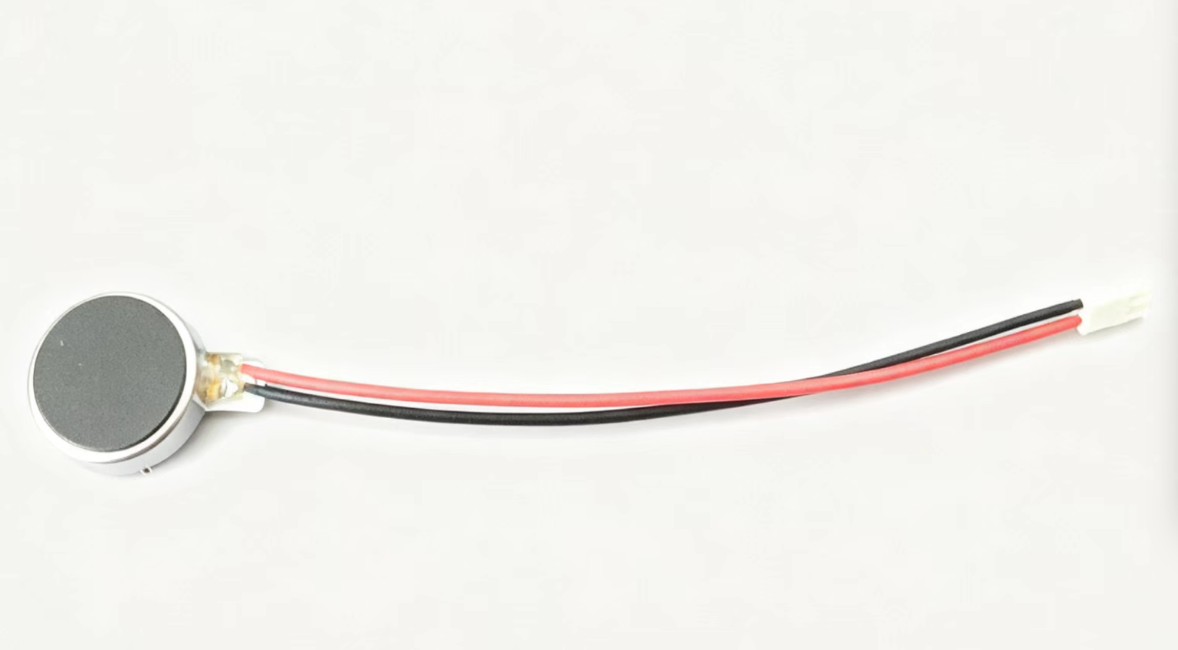

Coin vibration motor with connector
C1030-C
Voltage:3V
Speed:12000rpm
small and easy assemble with lower price
Coin Vibration Motor C1030-C

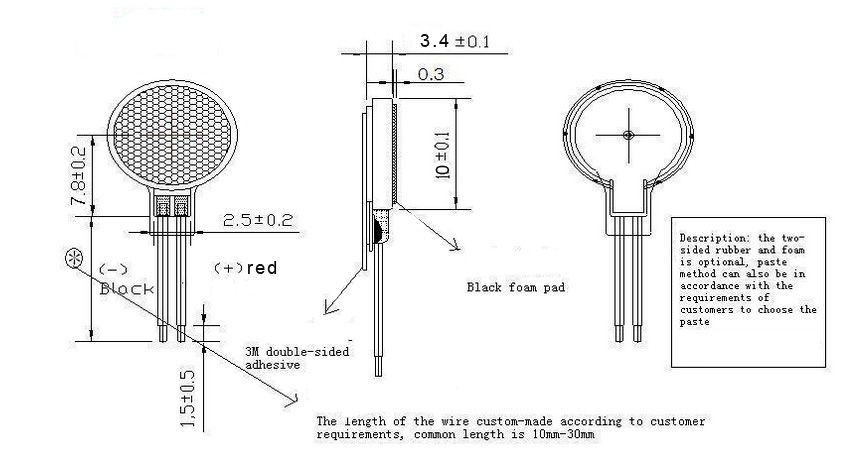

Coin motor diameter 10mm,thickness 3mm with connector:
1.2pitch,2p,wire 45mm
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| C1030-C | 3.0 | 2.3 | 12000±2500 | 80 | 140 | 10 | 2.5~4.0 |
