T0406M Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| T0406 | 3.0 | 2.4 | 10000±2500 | 100 | 120 | 28 | 2.6~3.4 |

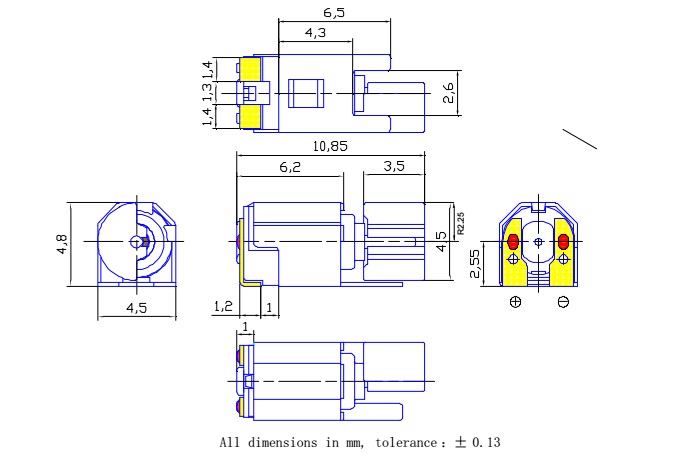

T0406M DRAWING
