The coin motor is not only a variety of models, rich choices, and highly automated, labor cost.
Widely used in a variety of consumer electronic products like phone,pager,vape,wearable device,smart watch,bracelet........

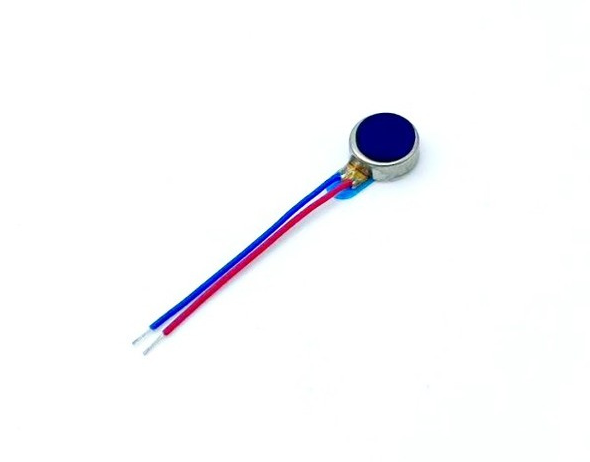

BLDC motor B0620
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| B0620 | 3.0 | 2.5 | 13000±3000 | 80 | 150 | 10 | 2.7-3.3 |
Brushless motor built-in band drive IC, strong shock, smaller size, longer life.
Mainly used in high-end wearable devices, beauty instruments, massage and medical
equipment products.
High quality copper,steal case made our BLDC motor in stable quality .

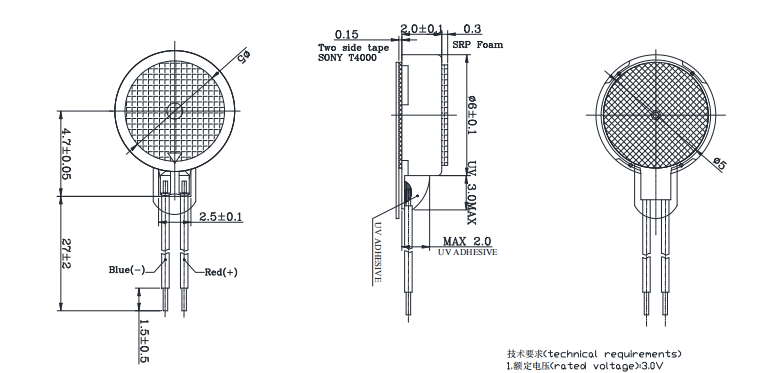

BLDC motor drawing:
