Z0408-DX Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| Z0408-DX | 1.3 | 0.7 | 9000±2500 | 110 | 130 | 11 | 1.1~1.6 |
| Z0408-DX | 3.0 | 2 | 12000±2500 | 80 | 100Max | 40 | 2.4~3.6 |

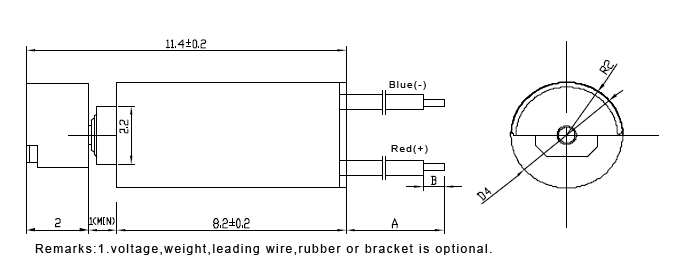

Z0408-DX Drawing
