Z0410-JZ Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| Z0410-JZ | 3.0 | 1.1 | 12000±2500 | 75 | 125 | 13±20% | 1.0~1.7 |

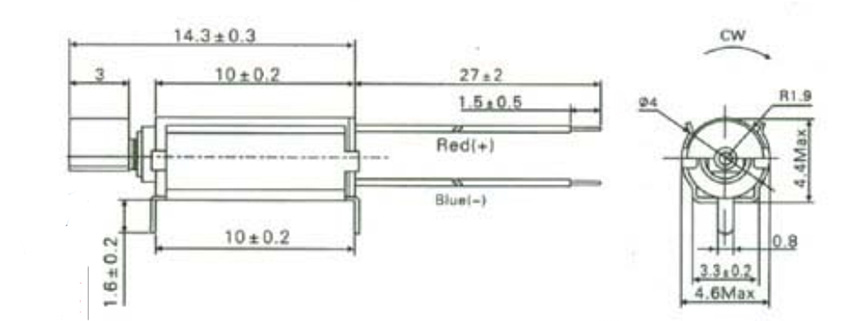

Z0410-JZ Drawing
Tel. : +86 577 6231 0509 E-mail : info@vibrationmotor.net
Z0410-JZ Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| Z0410-JZ | 3.0 | 1.1 | 12000±2500 | 75 | 125 | 13±20% | 1.0~1.7 |
Z0410-JZ Drawing
