Z0408-TP-Q Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| Z0408-TP-Q | 1.3 | 0.8 | 12000±2500 | 90 | 110 | 11 | 0.8~1.8 |
| Z0408-TP-Q | 3.0 | 2 | 13000±2500 | 90 | 120 | 40 | 1.6~3.6 |

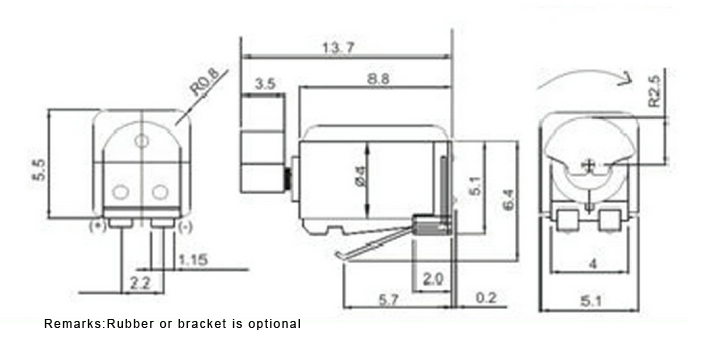

Z0408-TP-Q Drawing
