Z0408-JT Characteristic
| Model | Rated Voltage(V) | Start Voltage(V) | Rated Speed (Rpm) | Rated Current(mA) | Starting Current(mA) | Armature Resistance(Ohm) | Operating Voltage(V) |
| Z0408-JT | 1.3 | 1 | 9000±2500 | 110 | 130 | 11 | 1.1~1.6 |
| Z0408-JT | 3 | 2 | 11000±2500 | 80 | 100Max | 29 | 2.0~4.0 |

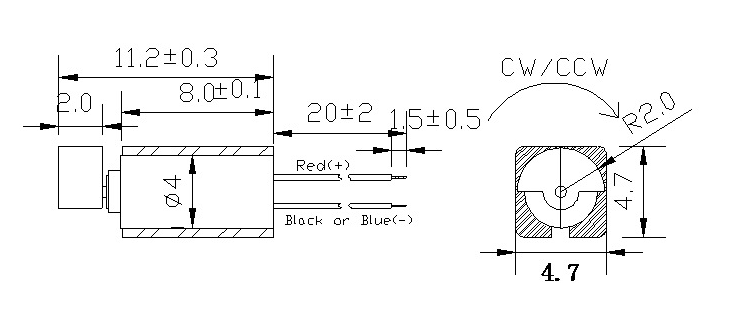

Z0408-JT Drawing
